Fixed Seat Rowing Geometry

by Colin Angus

The geometry of fixed-seat rowing is completely different from sliding-seat rowing, but equally important for performance and comfort. There are many variables including length of oars, location of rowing seat relative to the boat, position of foot brace, height of oarlocks above seat, height of oars, height of seat above bilge, and the spread of the oarlocks. Additionally, there are factors to consider with the oars, such as spoon blade vs flat and weighted vs non weighted handles. Below we discuss the different aspects of fixed-seat rowing, and the ideal way to set up your boat.

Location of Rowing Seat/Thwart

Typically, the rowing seat is located roughly in the center of the boat, but this isn’t always the case. The overall objective is to have the loaded boat’s center of gravity approximately in the middle (or just aft of the middle), and this includes passengers, gear, the rower, and the boat itself. If a boat is regularly carrying a passenger or cargo, the rowing position may be situated farther aft or forward to balance the load. Steering is enhanced by having the rowing station farther aft, while steering takes more effort when the rower is placed forward.

Usually, a rowing boat will already have a thwart in the ideal position as worked out by the designer. Sometimes there will be multiple rowing stations to provide ideal balance for different passenger/cargo configurations or for tandem rowing. If you are outfitting your own boat, or starting from scratch, it’s best to temporarily set a seat up (start with the seat in the center) and test how the boat moves. Check its lines in the water, and make sure the transom is not submerged. When being rowed the boat should track well. Adjust the seat position if necessary for ideal performance and then affix.

Height of Rowing Seat from Bilge

The height of the rowing seat from the lowest point of the bilge should be 5.5"- 8". A lower seat drops the center of gravity providing greater stability, however, don’t go too low, otherwise rowing will become uncomfortable over longer distances. Another factor affecting ideal seat height is the height of the oarlocks.

Height of Oarlocks above the Seat

This distance is largely determined by the height of the gunwales. Generally, oarlocks are positioned at the gunwales, and while the oarlock mounts can be raised slightly proud, they can’t be lower than the gunwales. There are a few designs of open rowing craft that have such low freeboard/depth that conventional oars can’t be used, and instead a sliding seat drop-in rig must be used.

The oarlocks (at the location where the oars rest) should be at least eight inches higher than the seat, to a maximum of 11.5". This measurement can influence at what height the seat should be placed. If your boat has low gunwales, you may need to place your seat closer to 5.5" from the bilge, while a large boat with high gunwales may require a higher seat placement. For a boat with low gunwales, the oarlock height can be raised a couple of inches above the gunwales by creating appropriately shaped mounting blocks.

Longitudinal Position of Oarlocks

The oarlocks should be placed approximately 13" back from the aft edge of the rowing seat. This is a suitable distance for most rowers. If you are customizing the distance specifically for yourself, add an inch if you are taller than average or subtract an inch if you are shorter.

Width of Oarlock Span

Oarlock span or spread is the distance that the two oarlocks are separated. Typically, the oarlock span is dictated by the beam/width of the boat where the oarlocks are situated. The span can be further increased by mounting small rigger bases, however, it cannot be less than the beam at the location of the oarlocks.

A wider span requires longer (hence heavier) oars, which means more overall weight to move through the water, and more effort required. On the other hand, if the spread is two narrow, the geometry simply doesn’t work, creating an awkward and less efficient stroke.

The ideal spread of the oarlocks should be 44" – 48". The spread can be wider, however, overall efficiency will decrease. For an overly beamy boat, the rowing station can be moved aft in order to reduce the oarlock spread. Keep in mind, however, that a rowing station placed aft will need to be balanced with a passenger or other ballast forward for ideal trim.

Faster boats tend to have a narrow beam, and it is likely that a good touring rowboat will have a narrower beam than 44". In order to create sufficient spread between the oarlocks, small riggers need to be used. The riggers can be bolted into position for easy removal, or they can be permanently affixed.

Foot Brace

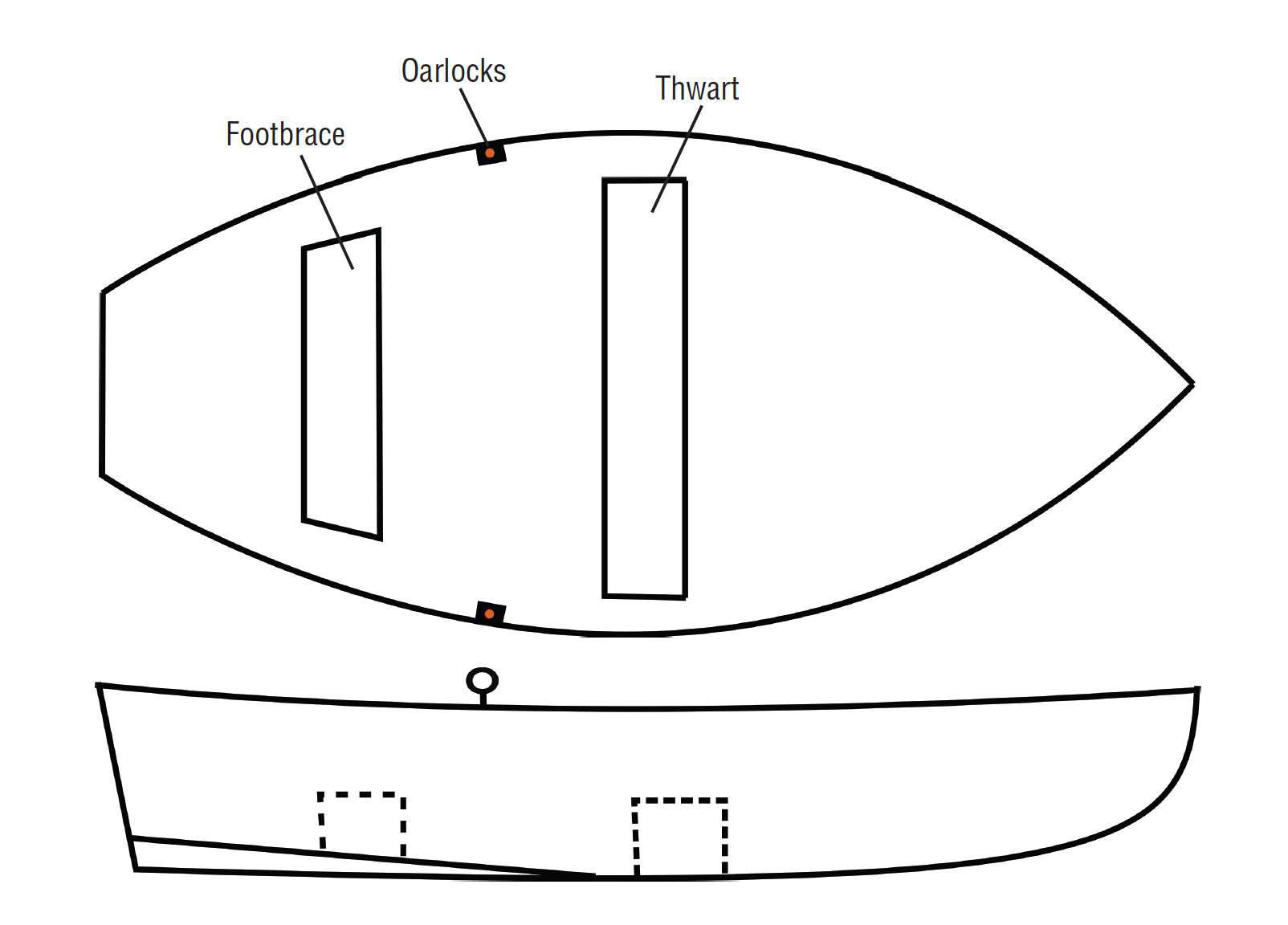

It’s important to have a solid foot brace to counter the force you are conveying through the oars. Foot braces can be adjustable for different sized people, but typically a position of about 26" abaft the aft edge of the rowing seat works for most. An appropriately placed thwart or seat can be used as a foot brace, or even a movable object (such as a chunk of foam or wood) can be placed in position braced against a thwart. The brace should be adequately sized so you can spread your feet apart for stability in rougher seas.

How Long Should the Oars Be?

The main factor dictating the length of oars to be used is the spread of the oarlocks. The wider the spread, the longer the oars need to be. Another lesser factor is the preference of the rower. Just like the gearing of a bicycle, the leverage of the oars changes depending on the length. Longer oars will make the boat “higher geared” suitable for more powerful rowers, while shorter oars (for a given oarlock span) will be easier to move through the water while providing less thrust.

The graph at right indicates approximately how long the oars should be relative to spread. Subtract or add an inch or two (higher or lower “geared”) for personal preference.

Position of the Oar Collar

The collar, or button, keeps the oar from sliding through the oarlock and can be made of plastic, leather or other material. The location of the collar on the oar dictates the percentage of inboard and outboard. Depending on personal preference, you may wish to position the collars to have some crossover of the handles (which increases performance slightly, but makes rowing a little more awkward), or collars positioned so the handles can’t make contact during the rowing stroke. It’s best to experiment a bit with the collar position to determine what works best for you and your boat.

Wear Protectors

The oarlocks will slowly wear through your wooden oars if you don’t have some type of sheathing to protect the wood. A wrap of leather at the location of contact is commonly used for this purpose, and is aesthetically pleasing. Alternatively, a wrap of fiberglass, or better, Kevlar (saturated with epoxy) works well for this purpose.

You can also find buttons/collars and wear protectors in a one-piece plastic unit. These don’t look as pretty as a two-piece system with a leather wrap, however, they are very functional.

Counterbalancing the Oars

Since the outboard of the oars is longer than the inboard, you will be fighting gravity each time you lift the oars out of the water. Additional weight can be added to the inboard of the oars to make them more balanced and easier to lift. Some traditional oars achieve this through shaping—with the oar shaft getting significantly thicker near the handle to add weight. Alternatively, a hole can be drilled longitudinally through the handle with lead rods inserted.

If you’re aiming to maximize performance, you’re better off using lightweight oars that don’t require counterbalancing. Adding lead to a human powered craft of any sort—whether it be a bicycle or rowboat will slightly compromise performance. With lightweight oars, the weight of your hands on the handles will almost be enough to lift the blades from the water. The key to creating lightweight oars is to use a light wood such as spruce or pine (with appropriate engineering so they don’t break). Additionally, significant weight can be shaved off the blades by making them thinner and laminating both sides with three-ounce fiberglass for reinforcement.

Spoon Blade Vs Flat Blade Oars

Spoon blade oars provide slightly better performance, with the downside of being a little more expensive or harder to make. Overall, both are good choices, and it comes down to personal preference.

U-Shaped Oarlocks Vs Round

U-shaped oarlocks allow you to lift the oars out of the oarlocks, so the oarlocks can stay in position when the oars are stowed. With round oarlocks, you cannot remove the oars from the oarlocks (without removing the button/collar), and instead the oarlocks stay with the oars. The oarlocks simply slide out from their holders and are stowed along with the oars. Round oarlocks are slightly stronger than u-shaped locks. If you always plan on removing the oarlocks when you remove the oars (which is advisable when switching to sailing, for example) it is better to use round oarlocks, since it is easier to keep track of them (and they can’t go overboard and sink!) when they are permanently affixed to the oars.
